RHINO XT
Seats: 4
Engine: 3.6L V6
Fuel Type: Gas
Prototype vehicle shown. Actual production vehicle may vary slightly.
The Re-invented All-Terrain SUV
The Rhino XT combines traditional aesthetics with the most updated technology to create the ultimate modern All-terrain SUV.
An Updated,
Modern take on the
Traditional SUV
We've created the ultimate all-terrain SUV, combining rugged power with sophisticated luxury. Featuring all the necessary tools for the modern driver.
3D Digital Instrument Cluster
Our custom 3D digital instrument cluster was meticulously designed by a European design team to ensure both visual appeal and intuitive functionality. We then brought the project home where a team of programmers in the U.S. painstakingly created the software and imaging. Experience our one-of-a-kind, beautifully crafted digital instrument.
Premium Audio Sound System
The Rhino XT features Alpine's Ultimate Jeep® Wrangler upgraded system, without losing factory controls. Also features enhancements such as navigation, customizable short-cuts, Bluetooth® wireless technology, and sound settings. All controlled through an easy-to- use, large 9-inch touch-screen. With its oversized screen, integrated system and advanced technology, this premium system will provide you with a high quality driving experience.
Sporty and Savvy Interior
Our custom interior provides functionality without sacrificing comfort. Premium leather seats and a European-style designer dash
enhance the Rhino XT with all the modern technologies you need.
An All-Terrain SUV For the Future.
USSV's team of talented designers and engineers developed this stylishly rugged vehicle inspired by both the past and the future. We take our work and the safety of our vehicles very seriously, meticulously designing, producing and testing every aspect of our vehicles. Design modifications and improvements are checked and verified before any part is produced. Once fabricated, each part undergoes a thorough fit and finish check prior to being matched with other components. Quality checks are conducted at every level of the build process to ensure the final product is solid, strong and built to last.
Removable Fender Flares
Our fender flares are designed to be removed smoothly, so you can transform the Rhino XT from a secure on-road vehicle to a rugged off-road warrior in minutes. The Rhino XT provides versatility without sacrifices.
Custom Wheels & All-Terrain Tires
The Rhino XT has one-of- a-kind alloy wheel rims, especially designed to enhance its rugged appeal. Toyo Tires® Open Country A/T All-Terrain tires provide excellent handling, in any drive condition, superior off-road traction, as well as a quiet and comfortable ride.
Bold Exterior
The Rhino XT integrates traditional aesthetics of the past and brings the all-terrain vehicle into the future.
Traditional yet futuristic; modern yet timeless. The Rhino XT is a modern classic.
Performance + Safety
Forge ahead on any terrain with our 3.6L V6 24-Valve WT 285 horsepower engine and 35-inch reinforced off-road Toyo Tires®, while sitting comfortably in our custom interior. We've also combined our redesigned, reinforced heavy duty roll cage with advanced multistage front airbags and a slew of other safety features, so you can have peace of mind while experiencing all the Rhino XT has to offer.
Optimum Performance

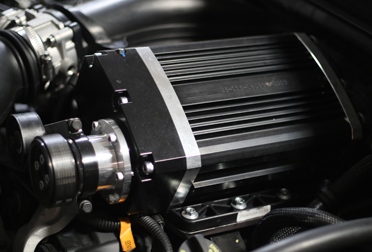

Offering Sprintex Superchargers to boost our vehicles' power and torque without sacrificing acceleration. The special ultra-efficient design of the twin screw compressors result in lower discharge temperatures and lower power drive requirements, thereby reducing engine stress and providing the best torque possible at all power levels. Sprintex Superchargers give maximum power with minimum wear. Available as an additional option.
Specifications & Options
Crafted with every detail in mind.
INTERIOR DIMENSIONS & CAPACITIES
| Head Room - Front | 41.3” |
| Head Room - Rear | 40.4” |
| Leg Room - Front | 41” |
| Leg Room - Rear | 41” |
| Payload Capacity - Standard | 850 lbs. |
| Seating Capacity - Maximum Seating | 4 |
| Seating Capacity - Standard Seating | 4 |
EXTERIOR DIMENSIONS & CAPACITIES
| Base Curb Weight - Automatic Trans | 4,500 bs. |
| Base Curb Weight - Manual Trans | 4,475 bs. |
| Ground Clearance - At Curb Weight - Approach Angle | 60 ° |
| Ground Clearance - At Curb Weight - Break over Angle | 30 ° |
| Ground Clearance - At Curb Weight - Departure Angle | 43 ° |
| Ground Clearance - At Curb Weight - Running Ground Clearance | 14” |
| Overall Body Width | 80.8” |
| Overall Height - with Hardtop | 71” |
| Overall Length | 187” |
| Overhang - Front | 27.5” |
| Overhang - Rear | 43.5” |
| Wheelbase | 116” |
ENGINE
3.6-Liter V 24-Valve VVT EngineTRANSMISSION
6-Speed Manual Transmission5-Speed Automatic Transmission Option
4x4 SYSTEMS
Command-Trac© Shift-on-the-Fly Part-Time 4WDBRAKES
4-Wheel Disc BrakesHydraulic Assist Brake Booster
MECHANICAL
160-Amp Alternator600-Amp Maintenance Free Battery
Conventional Differential Front Axle
Conventional Differential Rear Axle
Engine Oil Cooler
Next Generation Dana© 30 Solid Front Axle
Next Generation Dana© 44 Heavy Duty Rear Axle
Power Rack-and-Pinion Steering
R1234YF A/C Refrigerant
SEATING
Premium Napa Leather Seats with Adjustable Head RestraintsLow-Back Bucket Seats
Rear Folding Bench Seat
Rear-Seat Adjustable Head Restraints
Reclining Front Seats
Fast Release Passenger Front Seat for Rear Row Quick Exit
INTERIOR CONVENIENCE FEATURES
100-MPH Primary Speedometer12-Volt Auxiliary Power Outlet
Air Conditioning
Auto-Dimming Mirror with Reading Lamp
Cargo Compartment Floor Mat
Chrome Leather-Wrapped Shift Knob
Driver Seat Height Adjuster
Front and Rear Floor Mats
Front Seat Area Carpet
Front Seatback Map Pockets
Full-Length Floor Console
Glove Box
Leather-Wrapped Steering Wheel
Power Door Locks
Power Windows with Front One-Touch-Down Feature
Rear Compartment Covered Storage
Rear Seat/Wheelhouse/Cargo Carpet
Sliding Sun Visors with Mirrors
Storage Tray
Temperature and Compass Indication
Tilt Steering Column
Tire Pressure Monitor with Warning Lamp
Variable Intermittent Windshield Wipers
INTERIOR LIGHTING
Dome with On/Off Switch Lamp8 Speakers
Audio Jack Input for Mobile Devices
Steering Wheel Mounted Audio Controls
WHEELS & TIRES
USSV 20x9 Aluminum Alloy WheelsToyo Open Country 35x13.50R20 R/T Tires
Matching Spare Wheel
Tires - Spare Tire Type
TOPS
Removable Hard Top with Deck LidRear Window Defroster on Deck Lid Glass
DOORS
Full Doors with Power WindowsPower Door Locks
EXTERIOR LIGHTING
Center High-Mount Stop LampUSSV Silver Bordered LED Tail Lamps with Reflector
USSV Silver Bordered Turn Signal Lamps
Side Mount Turn Signal Lamps
Fog Lamps
LED Headlamps
EXTERIOR CONVENIENCE FEATURES
Replaceable Fender FlaresCharcoal Front Bumper
Charcoal Rear Bumper
Charcoal Bottom Rockers
Dual Exhaust Tips
Exterior Mirrors
Removable Roof Window
Fixed Long Mast Antenna
Power Heated Mirrors
Rear Window Defroster
FRP Front Bumper
FRP Rear Bumper
Tinted Rear Quarter and Hardtop Windows
Tinted Windshield Glass
OFF-ROAD PERFORMANCE
Front Stabilizer BarFuel Tank Skid Plate
Rear Stabilizer Bar
Transfer Case Skid Plate
Two Front Tow Hooks and Two Rear Tow Hooks
FUEL EFFICIENCY (MPG)
22.5 Gallon Fuel TankEPA est. MPG 16 City/21 Hwy
SAFETY & SECURITY
Advanced Multistage Front AirbagsElectronic Roll Mitigation
Electronic Stability Control
Front Passenger Seat Belt Alert
Hill Start Assist
Remote Keyless Entry
Security Alarm
Sentry Key© Theft Deterrent System
Speed Control
Sport Bar with Full Padding
Traction Control
*Typical specifications, options may vary depending
on chassis model.
Package ()
SPORT PACKAGE
Includes standard specifications4 Passenger
Black Premium Leather Seats
Black Interior
Jeep JK Style Dash and Center Console
STEALTH BLACK
TACTICAL GREEN
PREMIUM PACKAGE
Includes sport specifications4 Passenger
Premium Leather Seats (Color Options: Black/Black, Black/Red, Black/Saddle)
Plus:
USSV Style Dash and Center Console
USSV All Digital Instrument Cluster
Genuine Carbon Fiber Interior Trims
STEALTH BLACK
TACTICAL GREEN
